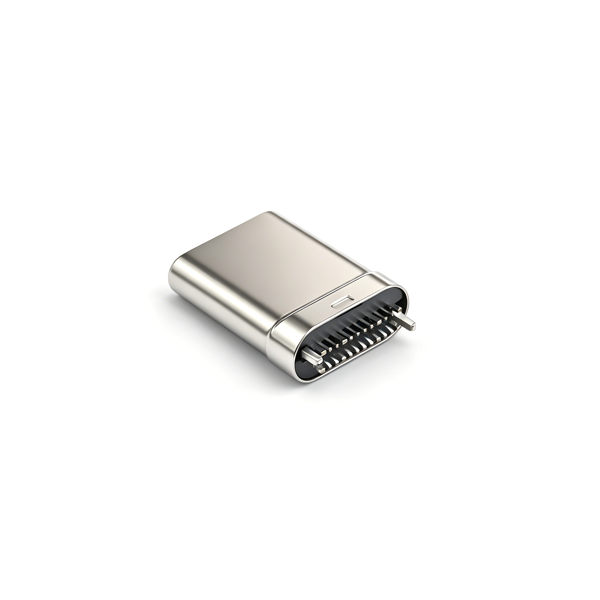

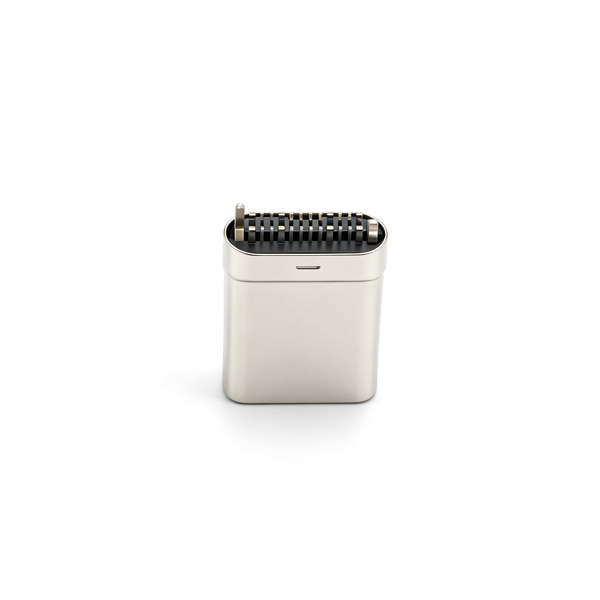

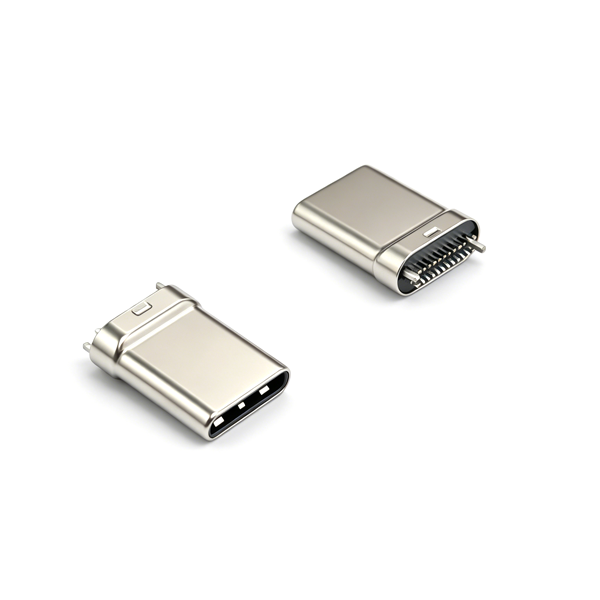

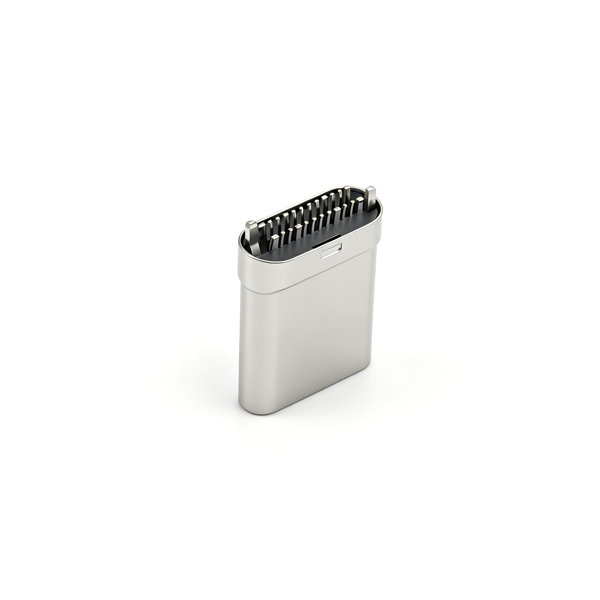

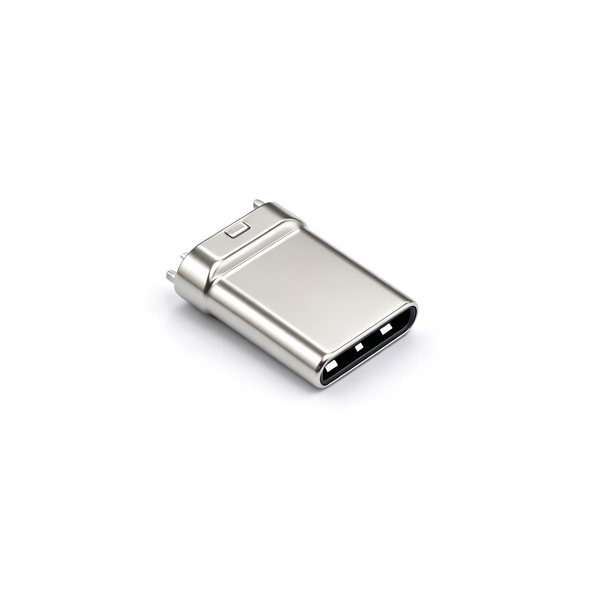

C18M2401A Type-C Male Connector 24PIN, Clamp Plate 0.8, L=10.6, 15A High Current, Stretched, With Step-Type C Connector-MingChuang

C18M2401A Type-C Male Connector 24PIN, Clamp Plate 0.8, L=10.6, 15A High Current, Stretched, With Step

15A High Current for Powerful Fast Charging: Supports up to 15A high current transmission with thickened power terminals, ideal for PD fast charging, energy storage and industrial equipment.
24PIN Full-Function for High-Speed Transmission: Standard 24PIN full configuration includes VBUS, GND, differential data, high-speed RX/TX, CC/SBU for charging, data and audio/video.
Stamped & Formed Shell for High Strength: One-piece stamped structure offers high strength, deformation resistance, shockproof and drop-resistant performance.
0.8mm Slim Clamp Design for Thin Devices: Standard 0.8mm clamp structure saves space, perfect for slim and compact electronic products.
Step Positioning for Accurate Installation: Built-in step positioning ensures precise alignment, avoids offset and tilting, improves assembly yield.
Gold-Plated Contacts for Low Resistance: Gold-plated contact area ensures contact resistance ≤50mΩ, anti-oxidation, wear-resistant, stable after 10,000 cycles.
LCP High-Temp Insulator for Reflow Soldering: UL94 V-0 flame retardant LCP material, high temperature resistant, no deformation, suitable for SMT reflow soldering.
EMC Spring for Strong Anti-Interference: Equipped with EMC spring to improve shielding, reduce interference and ensure stable high-speed transmission.
Eco-Friendly & Globally Compatible: RoHS & REACH compliant, hazard-free, suitable for consumer and industrial electronics worldwide.

HOTLINE: 18922973271

Category	Detailed Parameter Information
Product Model	C18M2401A
Full Product Name	TYPE C Plug 24PIN Clamp 0.8 L=10.6 15A High Current Stamped With Step
Structure Type	Clamp type, stamped shell, with step, 24PIN full function, EMC spring
Core Dimensions	Total length L=10.6mm, clamp thickness 0.8mm, PCB tolerance ±0.05mm
Electrical Parameters	Current 15A, contact resistance ≤50mΩ, insulation resistance ≥100MΩ, withstand voltage 100V AC
Mechanical Performance	10,000 mating cycles, insertion force 5~20N, extraction force 8~20N
Materials	Housing LCP(UL94V-0), power contact copper alloy T=0.25mm, signal contact copper alloy T=0.15mm, shell SUS301, latch SUS316L
Plating Specification	Contact: Ni50u"+Au; Solder: Ni50u"+Sn100u"; Shell: Ni50~150u"
Version Info	REV A, issued 2023.01.06, manufacturer: Mingchuang Technology (Dongguan) Co., Ltd.
Compliance	RoHS & REACH compliant

High Current Usage: Supports 15A high current. Use sufficient wire gauge and large PCB copper area for good heat dissipation. Do not overload.
Clamp Installation: Strictly use 0.8mm clamp. Fully insert into PCB slot with step positioning to avoid looseness, offset or poor contact.
SMT Soldering: Control reflow profile to avoid overheating, which may cause LCP deformation and dimension shift.
Mating Operation: Insert and extract horizontally. Do not insert obliquely, pull violently or twist sideways to avoid terminal deformation.
EMC Spring Protection: Do not press or bend EMC spring. Ensure good grounding to avoid signal interference.
PCB Design: Follow recommended layout with tolerance ±0.05mm. Reserve enough space to avoid interference.
Storage & Moisture: LCP absorbs moisture. Use soon after opening, store in dry, room-temperature, dust-free environment.
Transportation: Avoid dropping, extrusion or heavy pressure to prevent shell deformation, pin shift or structure damage.
