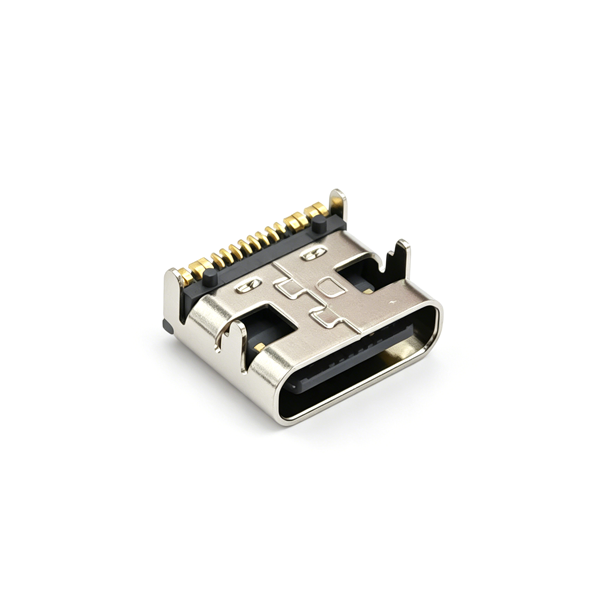

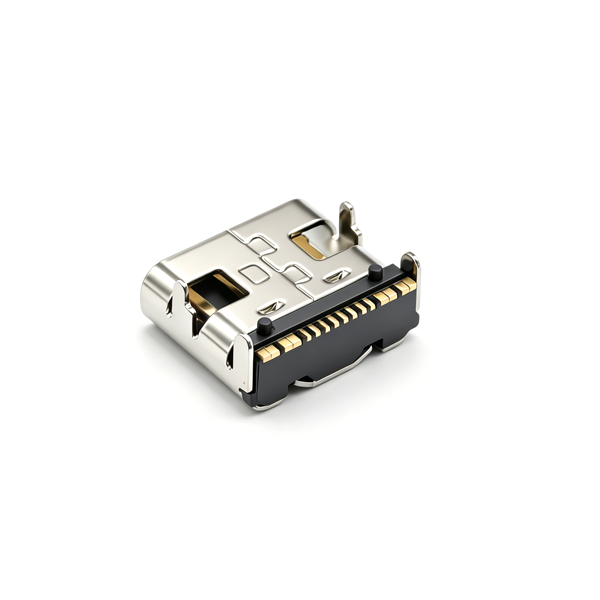

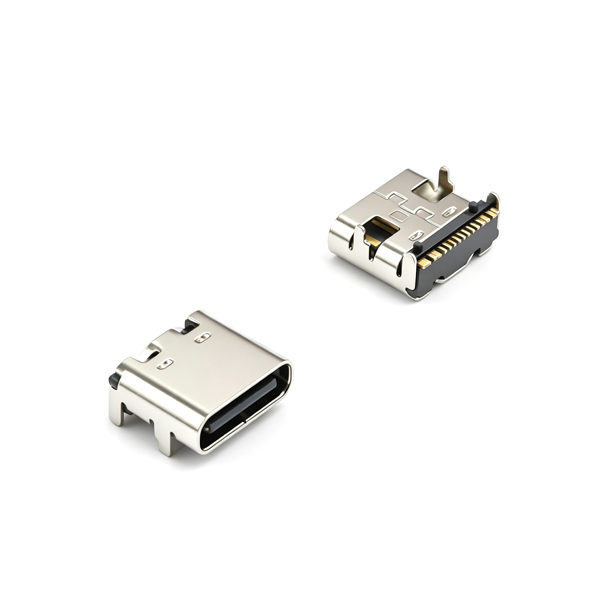

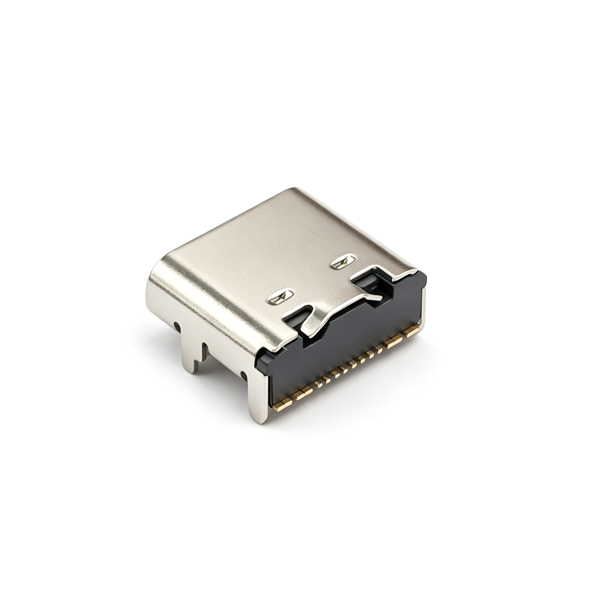

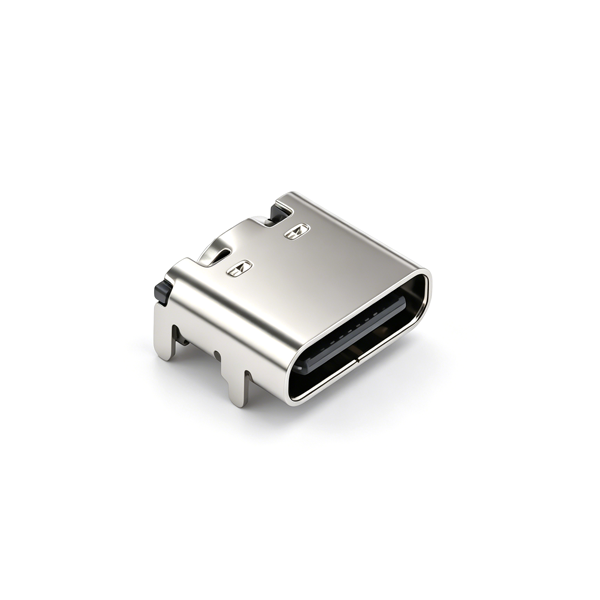

A051601A Type-C Female Connector 16PIN On-board Four-pin DIP&SMT L=7.35 15A High Current

Core Advantages

  • 15A High Current for High-Power Fast Charging: Rated current up to 15A with thickened C18400 copper alloy terminals, excellent conductivity and low temperature rise, ideal for PD fast charging, energy storage and industrial power supplies.

  • On-Board 4-Pin SMT for Super Stable Fixation: On-board design with 4-pin through-hole + SMT double welding, strong adhesion, excellent anti-vibration, anti-loosening and anti-bending performance, suitable for high-speed automatic SMT lines.

  • 7.35mm Ultra-Short Length Saves PCB Space: Only 7.35mm total length, no PCB sinking slot required, greatly reduces PCB space, perfect for compact and thin electronic devices.

  • 16PIN Full-Function Pins for All Scenarios: Standard 16PIN full layout, covering VBUS, GND, CC1/CC2, D+/D-, SBU1/SBU2, supporting fast charging and high-speed data transmission.

  • Gold-Plated Contacts for Low Resistance & Long Life: Terminals with full Ni plating + 3u" Au plating on contact area, contact resistance ≤40mΩ, anti-oxidation, wear-resistant, extraction force ≥5N after 10,000 cycles.

  • LCP+30% GF Insulator for High Temp Resistance: LCP+30% glass fiber black plastic, UL94 V-0 flame retardant, withstands 260℃±5℃ reflow soldering without blistering, melting or discoloration.

  • Wide Temp Range & 24H Salt Spray Resistance: Operating temperature -55℃~+85℃, passes 24H 5±1% salt spray test, corrosion and temperature resistant for industrial, automotive and outdoor use.

  • Standard Tape & Reel for Automatic Production: 1000PCS/reel, 10 reels/carton, top tape peel force 0.1~1.3N, 20 empty pockets on both ends, ideal for high-speed automatic placement machines.

  • Eco-Friendly & Latest Version for Stable Quality: RoHS & REACH compliant, REV A version released Oct 18, 2024, strict tolerance and plating control, high mass production consistency.

HOTLINE: 18922973271

CAD Drawing PDF Drawing 3D Drawing
Details
Specifications
Precautions
CategoryDetailed Parameter Information
Product ModelA051601A
Full Product NameTYPE C Female 16PIN On-Board 4-Pin SMT L=7.35 15A High Current
Structure TypeOn-board, 4-pin through-hole SMT, 16PIN full-function female
Core DimensionsTotal length L=7.35mm, PCB unspecified tolerance ±0.05mm
Electrical ParametersRated current 15A; Contact resistance ≤40mΩ; Withstand voltage 100V AC/1mA MAX; Insulation resistance ≥100MΩ(150V DC)
Mechanical PerformanceInsertion force 5~20N; Extraction force 8~20N; Durability 10,000 cycles (extraction force ≥5N after life)
Core MaterialsShell: SUS304 1/2H T=0.30mm; Middle clip: SUS301 3/4H T=0.20mm; Terminals: C18400 H04 T=0.25mm; Plastic: LCP+30%G/F black
Plating SpecificationTerminals: Full Ni 50u"-150u", Au 3u"±20% on contact, Au G/F on SMT area; Shell: Ni 50u"-150u"; Solderability ≥95%
Process RequirementSMT reflow peak 260℃±5℃, no blistering, melting or discoloration
Environmental ParametersOperating temp -55℃~+85℃; Salt spray test 24H (5±1% NaCl)
PackagingTape & Reel, 1000PCS/reel, 10 reels/carton(10000PCS); Reel Ø330mm, Carton 340×340×325mm
Version InfoREV A, issued 2024.10.18, manufacturer: Mingchuang Technology (Dongguan) Co., Ltd.
ComplianceRoHS & REACH compliant

1. Electrical Performance

  • Rated Current: 15A

  • Contact Resistance: ≤40mΩ

  • Withstand Voltage: 100V AC / 1mA MAX

  • Insulation Resistance: ≥100MΩ (150V DC)

  • Pin Configuration: 16PIN Full-Function Standard Layout

2. Mechanical Performance

  • Insertion Force: 5~20N

  • Extraction Force: 8~20N

  • Durability: 10,000 Cycles (Extraction Force ≥5N After Life)

  • Structure: On-Board, 4-Pin Through-Hole SMT

3. Materials & Plating

  • Shell: SUS304 1/2H T=0.30mm

  • Middle Clip: SUS301 3/4H T=0.20mm

  • Terminals: C18400 H04 T=0.25mm

  • Plastic: LCP+30%G/F Black (UL94 V-0)

  • Terminal Plating: Full Ni 50u"-150u", Au 3u"±20% on Contact

  • Shell Plating: Ni 50u"-150u"

  • Solderability: ≥95% Coverage

4. Dimensions & Tolerance

  • Total Length: L=7.35mm

  • PCB Unspecified Tolerance: ±0.05mm

  • General Tolerance: ±0.25mm / ±0.20mm / ±0.15mm

  • Angle Tolerance: ±3° / ±4°

5. Process & Environment

  • Reflow Temperature: 260℃±5℃ Peak for 10s

  • Operating Temperature: -55℃~+85℃

  • Salt Spray Test: 24H (5±1% NaCl)

6. Packaging & Version

  • Package: Tape & Reel

  • Per Reel: 1000PCS

  • Per Carton: 10 reels=10000PCS

  • Top Tape Peel Force: 0.1~1.3N

  • Carrier Tape Ends: 20 Empty Pockets Each

  • Compliance: RoHS, REACH

  • Version: REV A

  • Issued: 2024.10.18

  • High Current Usage Rule: This product supports 15A high current. Use sufficient wire gauge and large PCB copper area for good heat dissipation. Do not overload for long periods to avoid insulation aging caused by excessive temperature rise.

  • SMT Reflow Soldering Rule: Strictly control reflow peak temperature within 260℃±5℃, high temperature residence time not exceeding 10 seconds to prevent LCP blistering, melting, discoloration or dimension deformation.

  • 4-Pin Installation Rule: Ensure all four pins are fully inserted into PCB holes and tightly attached to pads during mounting. Avoid offset, bent pins or cold soldering to ensure welding strength and mechanical reliability.

  • Mating Operation Rule: Keep male and female connectors horizontally aligned and apply force evenly along the axial direction. Do not insert violently, obliquely or twist sideways to prevent terminal deformation, loose shell or poor contact.

  • Salt Spray Test Note: Plating damage at process bending areas and post-plating cutting areas is not considered as salt spray test failure. Normal use areas must pass 24-hour salt spray test.

  • PCB Design Rule: Follow recommended PCB layout for pads and holes, control tolerance within ±0.05mm, reserve enough installation and mating space to avoid interference with surrounding components.

  • Tape Feeding Rule: Control top tape peel force within 0.1~1.3N during automatic feeding. Avoid excessive peel force causing component drop or pin bending. Do not use the 20 empty pockets at both ends of carrier tape.

  • Storage & Transportation Rule: Store products in dry, dust-free and non-corrosive environment, avoid long-term exposure to high temperature and humidity. Prevent dropping, extrusion or heavy pressure during transportation to avoid pin deformation and structure damage.
