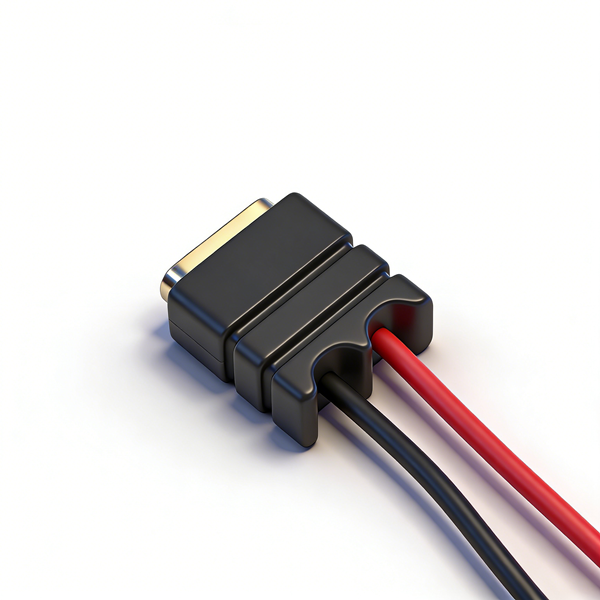

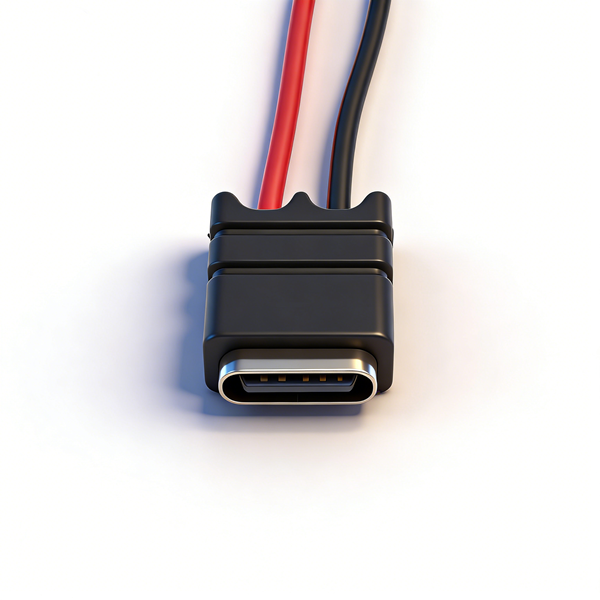

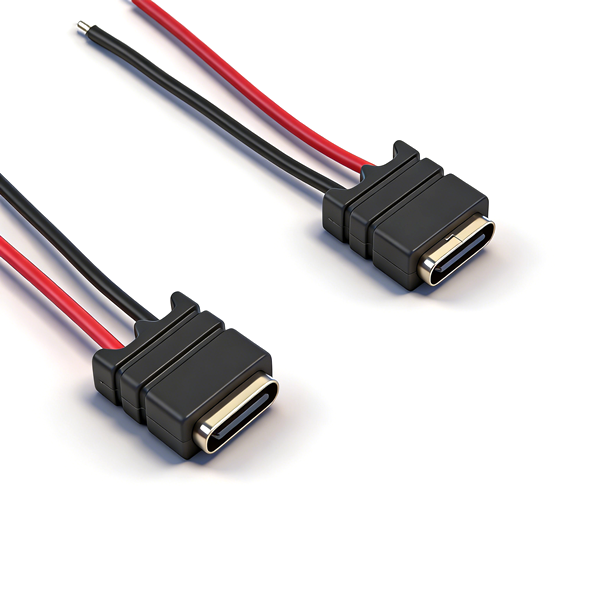

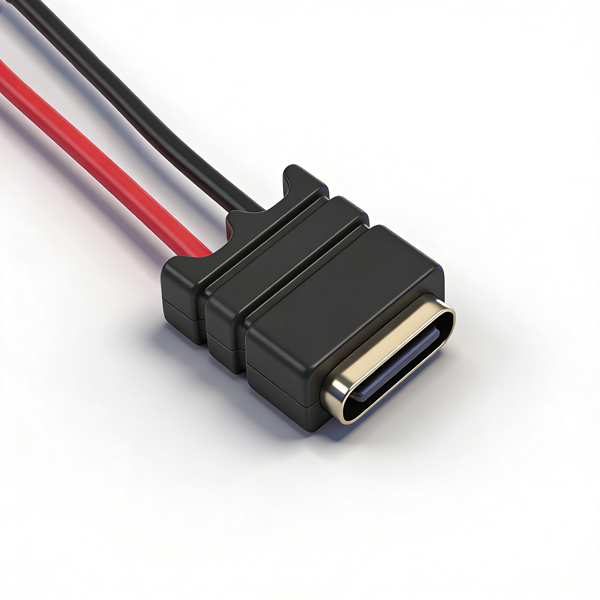

A010201A Waterproof Type-C Female Connector Two-core Wire L=12.5

Core Advantages

  • Integrated Waterproof Structure for Humid & Dusty Scenarios: Equipped with special waterproof ring sealing design, effectively blocks water vapor and dust intrusion, perfectly suitable for outdoor equipment, bathroom appliances, automotive electronics and other scenarios requiring basic waterproof protection.

  • 2-Core Wire Simplified Design for Power Transmission: Adopts 2-core wire dedicated structure, simplifies signal pins, focuses on power transmission function, simple and reliable structure with low failure rate, suitable for devices only needing power supply.

  • Customizable Wire Length for Diverse Installation: Standard total length 12.5mm, matched with AWG22# wire, supports customized wire length, flexibly adapts to different internal wiring and installation space requirements of equipment.

  • Wide Voltage & Current Range for Strong Versatility: Supports DC 12V rated voltage and 0.5-5A wide current range, can meet the power supply needs of various small electronic devices, smart homes and portable products.

  • 10,000 Cycles Lifespan for Stable Durability: Official plugging lifespan up to 10,000 cycles, insertion force 5~20N, extraction force 8~20N, smooth plugging feel, not easy to loosen after long-term use, stable performance without attenuation.

  • Low Resistance & High Conductivity for Efficient Transmission: Maximum contact resistance only 40mΩ, insulation resistance ≥100MΩ, withstand voltage AC 250V for 1 minute without arc or breakdown, excellent electrical insulation and conductivity, safe and reliable power supply.

  • Wide Temperature Operation for Strong Adaptability: Can work stably in the temperature range of -25℃~+85℃, adapts to different indoor and outdoor temperature conditions, meets the use environment requirements of various conventional electronic devices.

  • Eco-Friendly Mass Production for Stable Quality: Fully complies with RoHS and REACH environmental standards, REV A version standardized mass production on November 6, 2020, mature production process, high product consistency and reliability.

HOTLINE: 18922973271

CAD Drawing PDF Drawing
Details
Specifications
Precautions
CategoryDetailed Parameter Information
Product ModelA010201A
Full Product NameWaterproof TYPE C Female Connector 2-Core Wire L=12.5
Structure TypeWired female connector, 2-core wire structure, integrated waterproof ring
Core DimensionsTotal length L=12.5mm, drawing scale 1:1, unit mm
Wire SpecificationAWG22#, customizable wire length
Rated Electrical ParametersRated load: DC 12V 0.5-5A; Contact resistance: ≤40mΩ; Insulation resistance: ≥100MΩ; Withstand voltage: AC 250V for 1 minute
Mechanical Performance ParametersInsertion force: 5~20N(0.5~2.0kgf); Extraction force: 8~20N(0.8~2.0kgf); Plugging lifespan: 10,000 cycles(10~20 cycles/min)
Environmental ParametersOperating temperature range: -25℃~+85℃
Tolerance StandardsGeneral tolerance: ±0.35mm/±0.25mm/±0.15mm; Angle tolerance: ±3°/±4°
Version InfoREV A, released November 6, 2020, manufacturer: Mingchuang Technology (Dongguan) Co., Ltd.
Compliance StandardsCompliant with RoHS and REACH environmental requirements

1. Electrical Performance Parameters

  • Rated load: DC 12V 0.5-5A

  • Contact resistance: ≤40mΩ

  • Insulation resistance: ≥100MΩ

  • Withstand voltage: AC 250V for 1 minute

  • Wire configuration: 2-core, black wire

2. Mechanical Performance Parameters

  • Insertion force: 5~20N(0.5~2.0kgf)

  • Extraction force: 8~20N(0.8~2.0kgf)

  • Plugging lifespan: ≥10,000 cycles

  • Plugging speed: 10~20 cycles/minute

  • Structure: Wired type, integrated waterproof ring

3. Dimensions & Wire Specifications

  • Total length: L=12.5mm

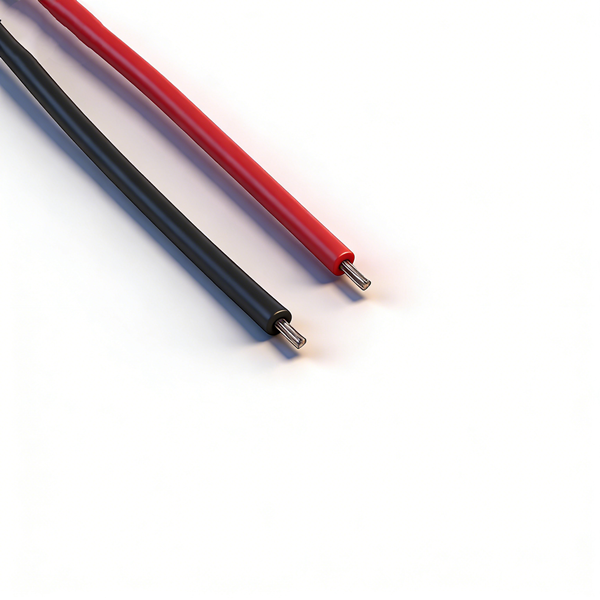

  • Wire specification: AWG22#

  • Wire length: Customizable

  • Drawing scale: 1:1, unit mm

  • General tolerance: ±0.35mm/±0.25mm/±0.15mm

  • Angle tolerance: ±3°/±4°

4. Environmental & Process Parameters

  • Operating temperature: -25℃~+85℃

  • Waterproof structure: Integrated special waterproof ring

  • Wire color: Black

5. Environmental & Version Information

  • Compliance: RoHS, REACH

  • Version: REV A

  • Release date: November 6, 2020

  • Manufacturer: Mingchuang Technology (Dongguan) Co., Ltd.

  • Waterproof Performance Protection Specification: Ensure the waterproof ring is intact, undamaged and undeformed during assembly, installed in place with uniform compression, and the sealing surface is tightly fitted without gaps. It is strictly prohibited to use the product when the waterproof ring is damaged or not properly assembled to avoid waterproof failure.

  • Wire Soldering & Connection Specification: Control soldering temperature and time during wire soldering to avoid high temperature scalding the wire insulation layer and causing short circuit. After soldering, check the firmness and insulation of solder joints to ensure no cold soldering, false soldering or bridging.

  • Plugging & Unplugging Operation Specification: Keep the male and female connectors horizontally aligned during plugging, apply force evenly along the axial direction. Violent plugging, oblique plugging and lateral pulling are prohibited to prevent damage to the internal structure of the interface and wire breakage.

  • Electrical Usage Specification: Use strictly according to rated parameters. Rated voltage shall not exceed DC 12V, current shall be controlled within 0.5-5A. Overvoltage and overload use are prohibited to avoid product overheating damage or safety hazards.

  • Wire Protection Specification: Avoid excessive bending, twisting and pulling of the wire during use. Sharp objects are prohibited from scratching the wire insulation layer. Reserve sufficient margin during wiring to prevent internal wire breakage due to long-term stress.

  • Environmental Usage Specification: Operating temperature shall be controlled within -25℃~+85℃. Avoid long-term use in environments beyond the temperature range. It is prohibited to use this product in strongly corrosive or flammable and explosive environments.

  • Storage & Transportation Specification: Store products in a dry, ventilated environment free of corrosive gases, avoid direct sunlight and high temperature and humidity. Prevent heavy pressure, falling and severe vibration during transportation to avoid interface deformation and wire damage.

  • Custom Wire Length Note: If you need customized wire length, please clarify the specific length requirements and tolerance range in advance. Customized products do not support returns or exchanges without quality problems. Please confirm your requirements before placing an order.
