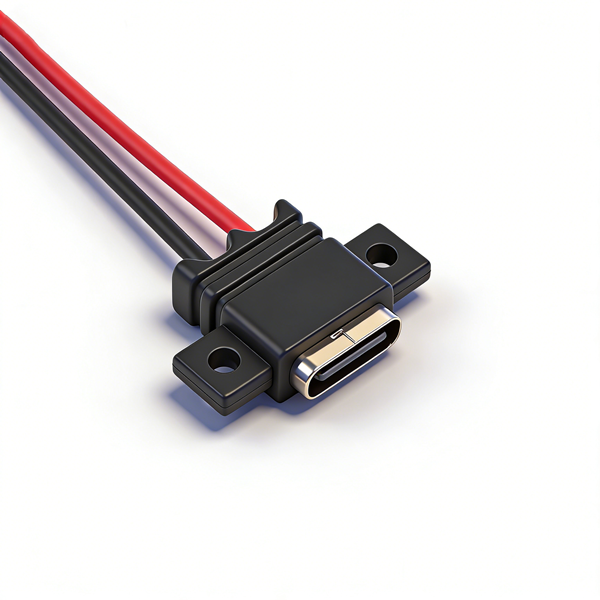

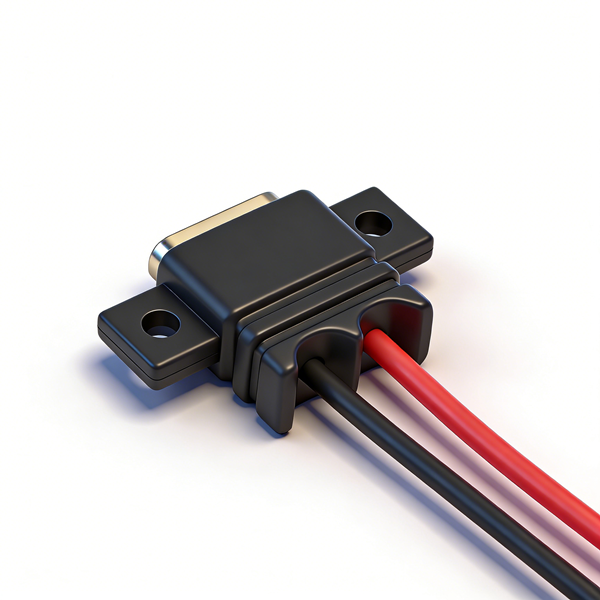

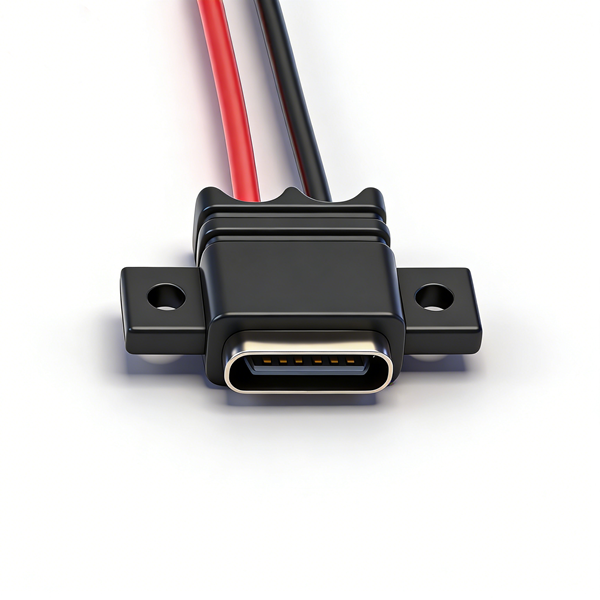

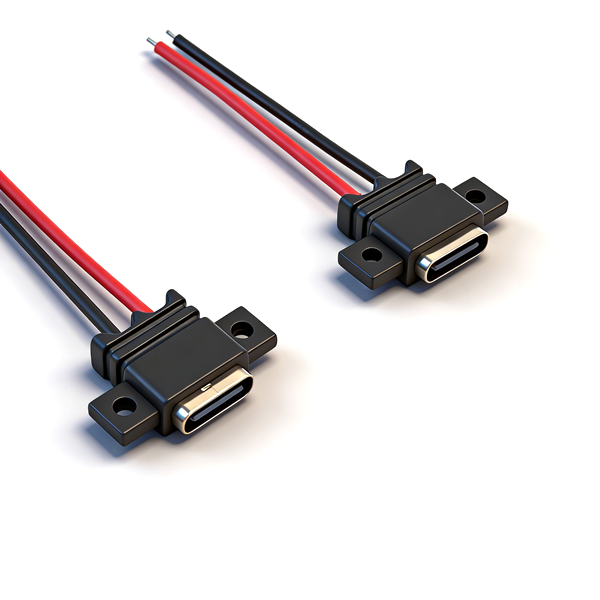

A010202A Waterproof Type-C Female Connector, Two-core Wire, L=12.5, With Horizontal Lock Hole

Transverse Lock Hole Installation Specification: Use matching screws or clips through the transverse lock hole for secondary reinforcement during installation. Ensure screws are tightened properly but not excessively to prevent shell cracking; the product must not be loose or shifted after locking.

Waterproof Performance Protection Specification: Ensure the waterproof ring is intact, undamaged and undeformed during assembly, installed in place with uniform compression, and the sealing surface is tightly fitted without gaps. It is strictly prohibited to use the product when the waterproof ring is damaged or not properly assembled to avoid waterproof failure.

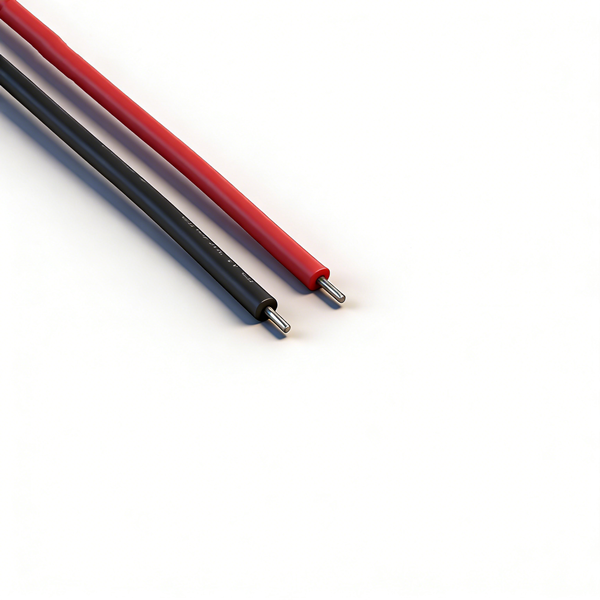

Wire Soldering & Connection Specification: Control soldering temperature and time during wire soldering to avoid high temperature scalding the wire insulation layer and causing short circuit. After soldering, check the firmness and insulation of solder joints to ensure no cold soldering, false soldering or bridging, and red and black wires correspond to correct positive and negative poles.

Plugging & Unplugging Operation Specification: Keep the male and female connectors horizontally aligned during plugging, apply force evenly along the axial direction. Violent plugging, oblique plugging and lateral pulling are prohibited to prevent damage to the internal structure of the interface and wire breakage.

Electrical Usage Specification: Use strictly according to rated parameters. Rated voltage shall not exceed DC 12V, current shall be controlled within 0.5-5A. Overvoltage and overload use are prohibited to avoid product overheating damage or safety hazards.

Wire Protection Specification: Avoid excessive bending, twisting and pulling of the wire during use. Sharp objects are prohibited from scratching the wire insulation layer. Reserve sufficient margin during wiring to prevent internal wire breakage due to long-term stress.

Environmental Usage Specification: Operating temperature shall be controlled within -25℃~+85℃. Avoid long-term use in environments beyond the temperature range. It is prohibited to use this product in strongly corrosive or flammable and explosive environments.

Storage & Transportation Specification: Store products in a dry, ventilated environment free of corrosive gases, avoid direct sunlight and high temperature and humidity. Prevent heavy pressure, falling and severe vibration during transportation to avoid interface deformation and wire damage.

Custom Wire Length Note: If you need customized wire length, please clarify the specific length requirements and tolerance range in advance. Customized products do not support returns or exchanges without quality problems. Please confirm your requirements before placing an order.
