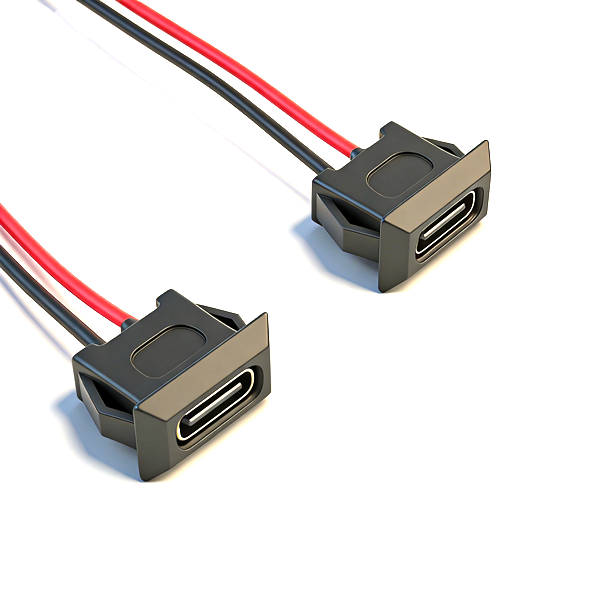

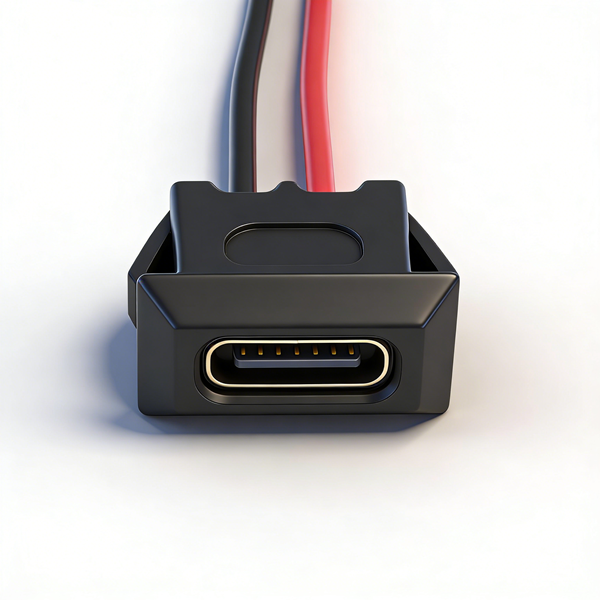

A010205A Waterproof Type-C Female Connector, Two-core Wire, L=11.8, With Mounting Ears

Core Advantages

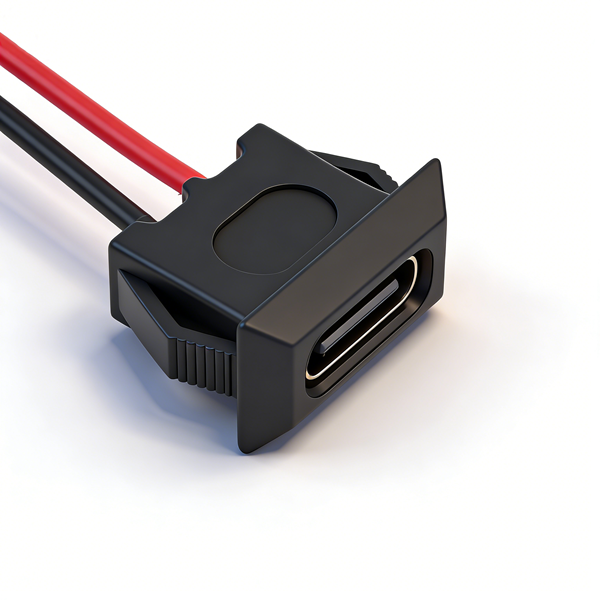

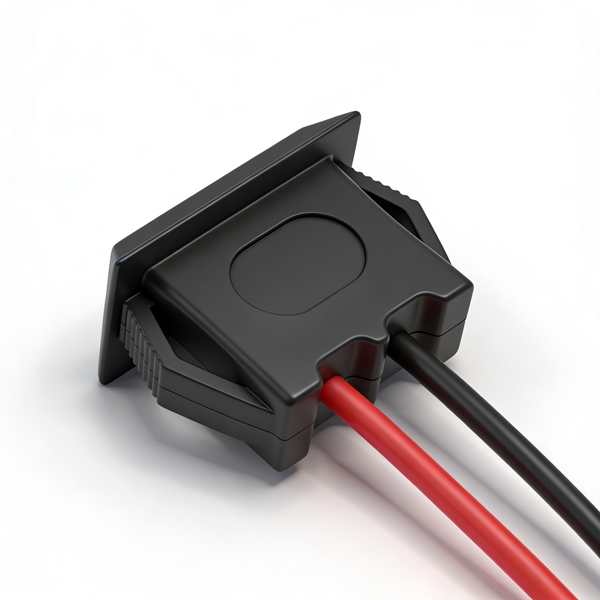

  • With ears for stable mounting: Dual ears allow screw locking on panel/housing, precise positioning, anti-vibration and anti-pullout.

  • Waterproof ring for water & dust proof: Built-in waterproof ring blocks moisture, dust and oil, suitable for humid and outdoor use.

  • 2-core power-only design: Simplified power structure, no extra signals, stable and low failure rate.

  • Compact 11.8mm length: Short body saves space, ideal for compact and slim devices.

  • Wide current for versatility: DC 12V 0.5–5A, fits most small appliances and smart devices.

  • 10000 cycles long lifespan: Durable for 10000 matings, stable contact and long life.

  • High electrical safety: Contact resistance ≤40mΩ, insulation ≥100MΩ, withstand AC 250V/1min.

  • Wide temperature range: Operates at -25℃~+85℃ for harsh environments.

  • Eco-friendly & compliant: RoHS & REACH compliant, REV A mass production.

HOTLINE: 18922973271

CAD Drawing PDF Drawing
Details
Specifications
Precautions
CategoryDetails
ModelA010205A
NameWaterproof TYPE-C Female 2-Core L=11.8 With Ears
StructureWith ears, 2-core, waterproof ring, panel mount
LengthL=11.8mm, scale 1:1, mm

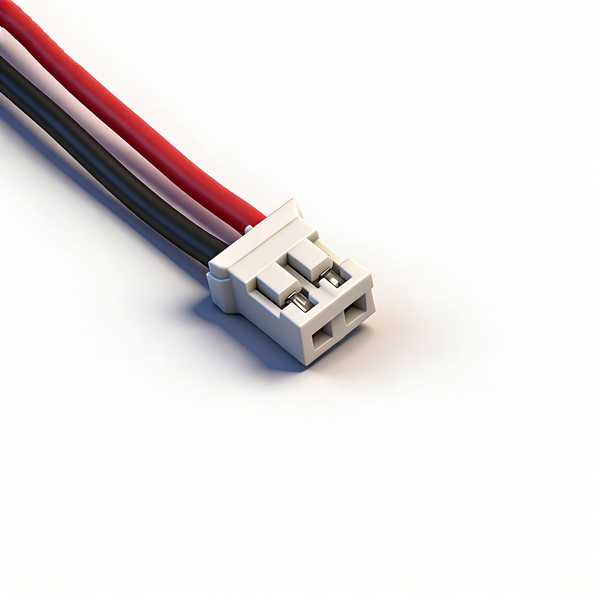

Wire2-core (red/black), length customizable
ElectricalDC12V 0.5-5A; R≤40mΩ; Insulation≥100MΩ; AC250V/1min
MechanicalInsert 5~20N; Extract 8~20N; 10000 cycles
Temp-25℃~+85℃
Tolerance±0.35/±0.25/±0.15mm; angle ±3°/±4°
VersionREV A, 2020.11.06
ComplianceRoHS, REACH
MfgMingchuang Technology (Dongguan) Co., Ltd.

1. Electrical

  • Rated load: DC 12V 0.5–5A

  • Contact resistance: ≤40mΩ

  • Insulation resistance: ≥100MΩ

  • Withstand voltage: AC 250V 1min

  • Wire: 2-core red/black, power only

2. Mechanical

  • Insert force: 5~20N

  • Extract force: 8~20N

  • Cycles: 10000

  • Structure: with ears, waterproof ring, L=11.8mm

3. Dimensions

  • Total length: L=11.8mm

  • Panel cut-out: 14.2–14.8mm / 5.5–5.7mm

  • Tolerance: ±0.35/±0.25/±0.15mm

4. Environment

  • Temp: -25℃~+85℃

  • Waterproof: with gasket

  • Compliance: RoHS, REACH

  • Ear mounting: Align both ears to panel holes, tighten screws evenly. Do not over-tighten to avoid ear breakage.

  • Waterproof ring: Keep gasket intact and evenly compressed. Do not use without gasket.

  • Panel cut-out: Follow drawing 14.2–14.8mm ×5.5–5.7mm to avoid loose or tight fit.

  • Wire soldering: Control temperature to avoid insulation damage. Correct red/black polarity, no cold solder.

  • Mating: Insert horizontally, no tilting or twisting to prevent damage.

  • Electrical limit: Do not exceed DC12V 5A to avoid overheating.

  • Wire protection: Avoid bending, pulling or crushing wires.

  • Environment: -25℃~+85℃. Store dry and dust-free.
